Xecuter 2.X Pro Dip Switch Settings

Published by forahobby on 2005-03-12
Category: Xecuter | Page Views: 22,694


Xbox-Hq Xecuter Forums: here

The Xecuter 2.X Pro series have 4 banks of 256k each.

The Pro's come with 4 Dip switches which allow you to boot with a series of combinations:


Click to Enlarge


As the switch is upside down as you look at it when attached to the front of the console, here is how the switches would look directly:


Click to Enlarge

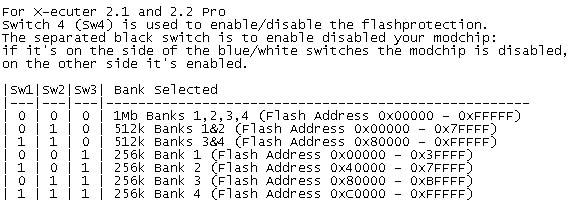

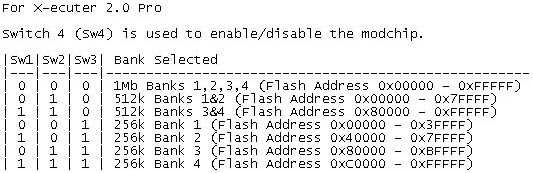

And lastly below are the old X2.0-2.2Pro switch settings:

The DIP switches settings for the X2.0 Pro are above the "Bios Switch Settings" picture and the X2.1 & X2.2 Pro are below it to make it easier to read..


Click to Enlarge



Click to Enlarge



Click to Enlarge
