 Xbox Slimbox
Xbox Slimbox
Published by Tonygnome on 2008-07-30
Category: Case Mods | Page Views: 247

This is my first tutorial to bare with me.
Making a xbox slimbox
Hi, this tutorial is to give you the idea of building a slimbox, me and everyone else at xbox-hq are not responsible if you mess up your xbox.
Before you do anything flash youre bios with xecuter2 5035 so the xbox doesnt look for a dvd drive.
Tools needed:
Hacksaw
Dremel
Thread tapping equipment
File
Sandpaper
ruler
Hot glue gun
Drill
Cut everything with a hacksaw, file it then sand it.

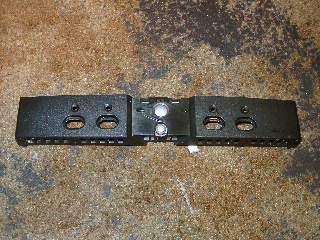

1.first cut the top off the front pannel.
Photobucket

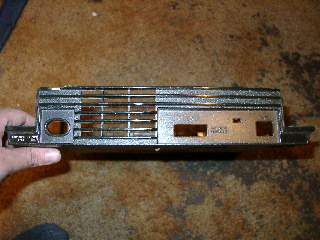

2.next trim the side with a of the lid down about 17mm.
Photobucket

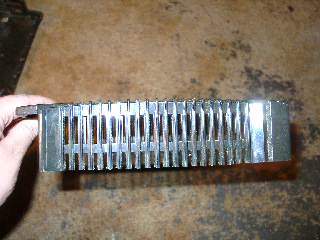

3. then trim the back down 17mm
Photobucket

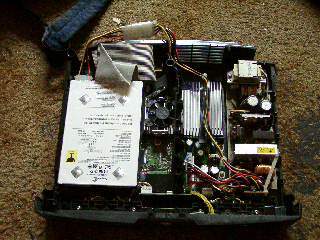

4. After you will need to fabricate your own hdd holder, so you can put the hdd out of the way here.
Photobucket

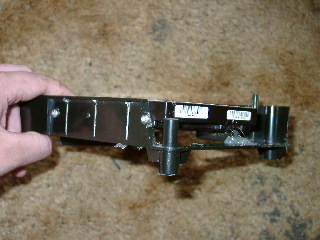

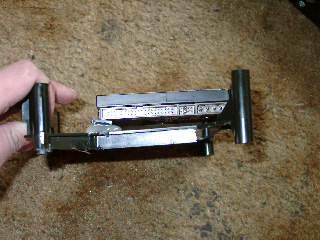

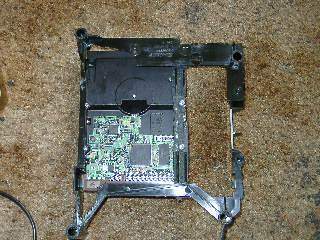

5.drill holes in the side of the drd drive holder fror the hdd, then hotglued a piece of plastic over the dvd drive holder drill holes and screwed the hdd in, you will also need to trim the legs on the new hdd holder 17mm shorter to fit in the lowered case.
Photobucket
Photobucket
Photobucket
6. last of all you will need something to hold the new creation together, you need to cut the old screws just after the thread and tapp the screw with a m5 thread, tap the lid with m4 thread
Photobucket

By Tonygnome

Photobucket
