Tutorial by: Michael Brim
Xbox modification has come a long way in the past couple years. With the introduction of the TSOP mod, potential modders no longer had to shell out money for a modchip; rather just bridge two points on the Xbox motherboard. Now one doesn't even have to open up his Xbox. Welcome to the world of soft modding. Using code exploits in certain games, a user is able to load a phony gamesave that will boot into a Linux based operating system and allow a user to mod his Xbox... in under ten minutes.
Before I go on, soft modding voids your warranty. It is not illegal, but if something goes wrong, you can't return your console to Microsoft and expect them to send you a new one.
You're going to need the following things before we get started:
1. An Xbox Memory Card
A way to transfer two gamesaves from your PC to the memory card. Whether through Action Replay or using a friend's modded Xbox, etc.
2. One of the Following Games
a. Any version of Tom Clancy's Splinter Cell (NOT PANDORA TOMORROW OR CHAOS THEORY)
b. The original version of 007: Agent Under Fire or the Platinum Hits AUF with the Serial #: 1448517 (NOT 1448527)
c. Mech Assault with the Serial #: MS02301L on the inner ring of the game CD
3. An internet connection, XBOXHQ VIP ACCESS, BitTorrent client or an IRC client (http://www.mirc.com), an FTP client (Smart FTP and WinRAR (http://www.rarsoft.com)
Download AutoInstaller Deluxe or Softmod Installer Deluxe:
First thing you need to do is acquire an All-in-One exploit package. Where do you get this? Launch your webbrowser to http://www.xbox-hq.com and become a vip member to download directly from the vip servers.. OR you could also download for free via bit torrent links located on the official Auto Installer Deluxe website http://www.aid.xbox-hq.com..
If you are familiar with IRC then start the IRC client of choice, and type: /server irc.efnet.net
Once connected to EFNet, type /j #xbins and then type /msg xbins !list You will receive a private message from Xbins who will give you the location and login to the FTP.
Once connected to the FTP, navigate to /XBOX/exploits/_Packages/Softmod Installer Deluxe/ and download the Softmod.Installer.Deluxe.v2.0.Xbox-Hq.rar file.

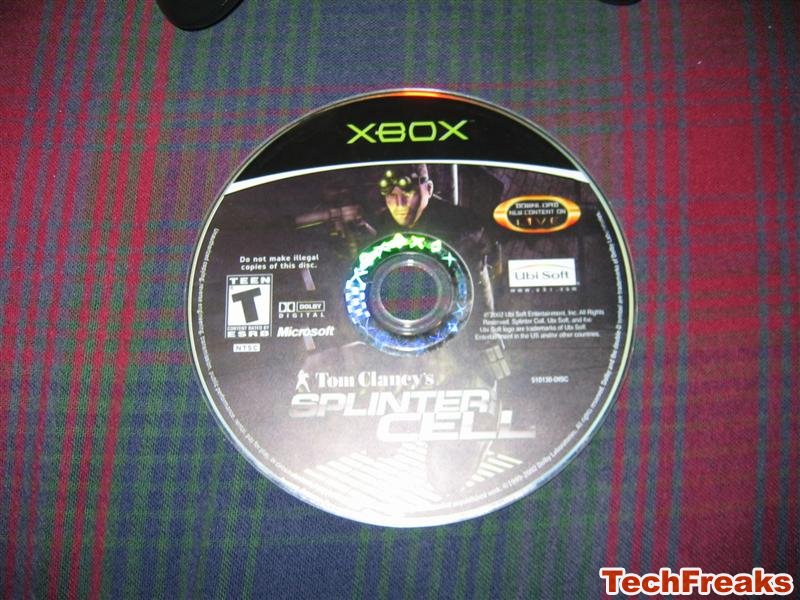

For this tutorial, we'll be using the Splinter Cell exploit. All exploits are pretty much the same.
Extract the two .zip files (SID.Splinter.Cell.v2.0.Xbox-Hq.zip and SID.Splinter.Cell.v2.0.NTSC.Xbox-Hq.zip) from the RAR archive.

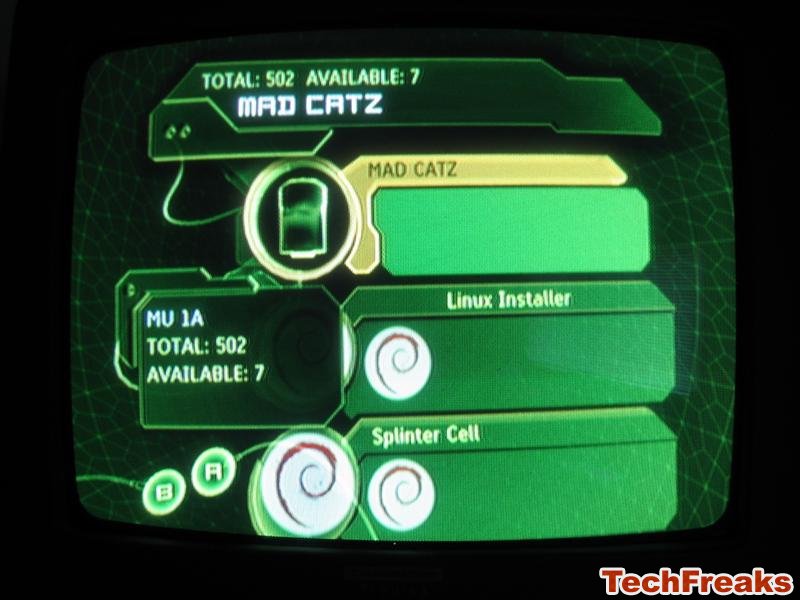

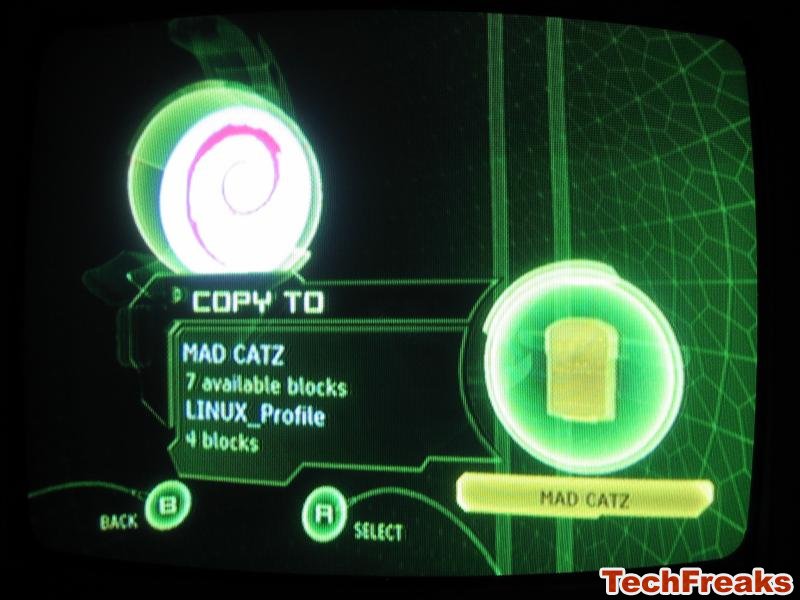

If you're using Action Replay, drag both zip files to your memory card. Then copy both gamesaves from the memory card to your unmodded Xbox.

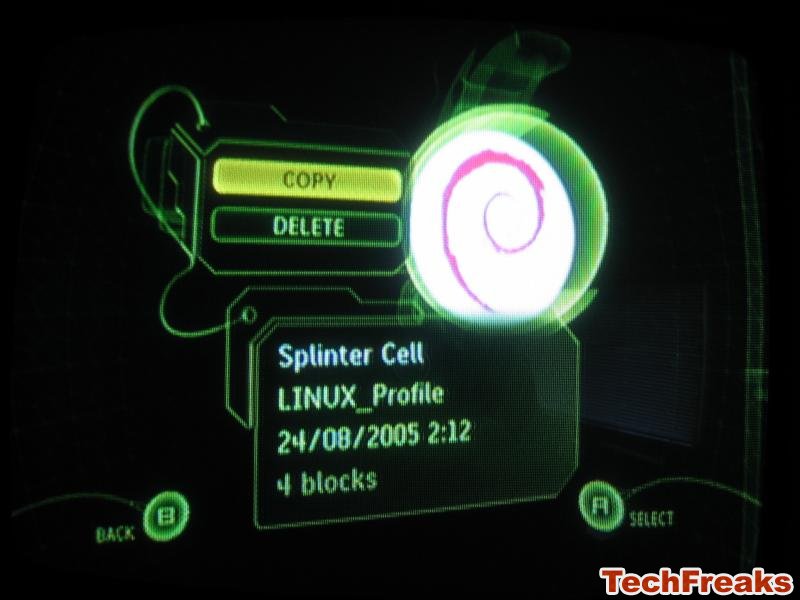

If you have access to a modified Xbox, you can extract both .zip files and FTP them over to the modified Xbox console, then using the MS Dash, copy both the Linux Installer and Splinter Cell gamesaves to the memory card, switch consoles and copy the gamesaves from the memory card to the unmodded Xbox.

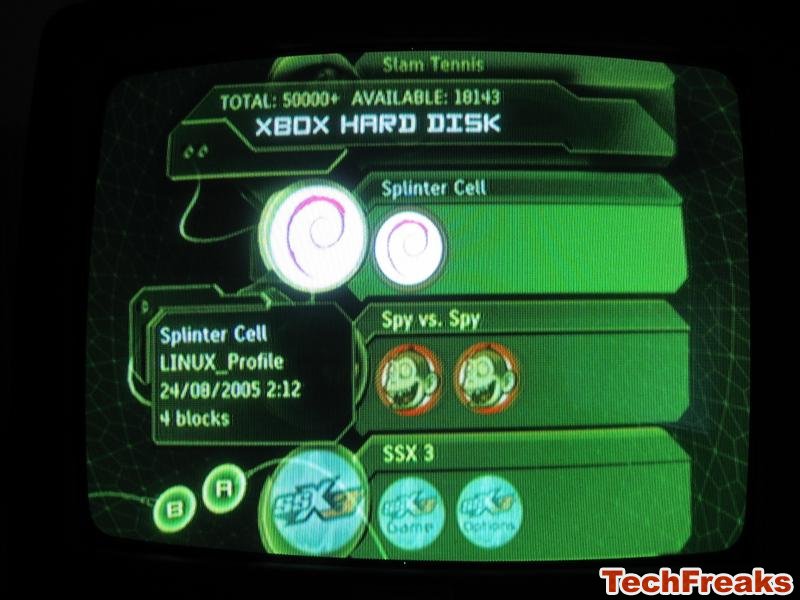

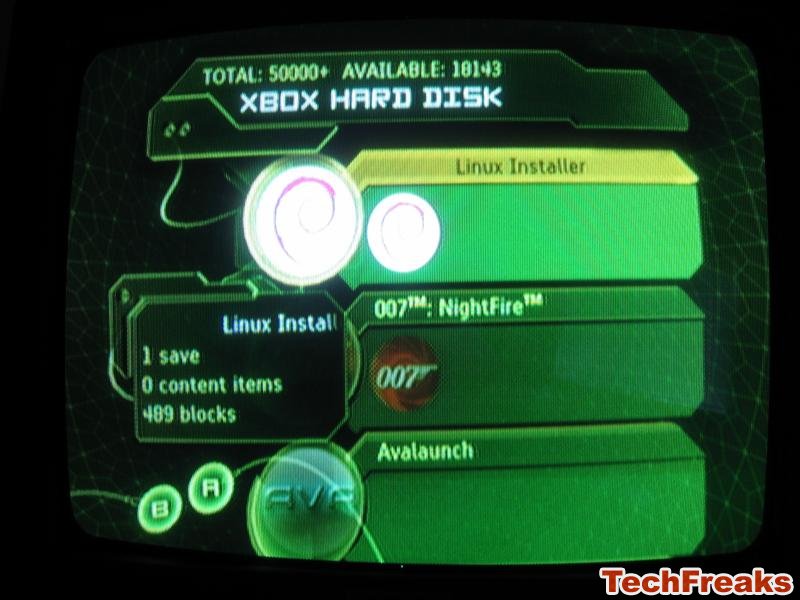

There should be two gamesaves. One should be 4 blocks (a linker file), the other 489 (the installer file).

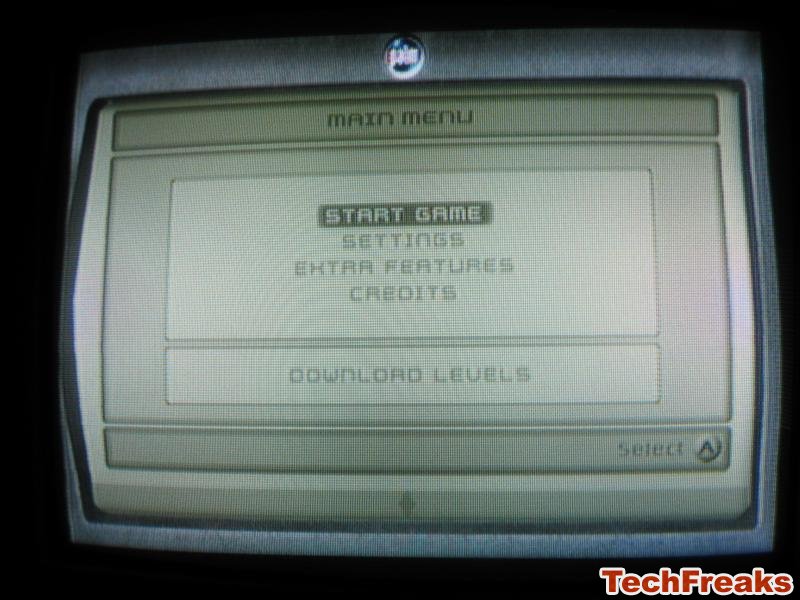

Start up Splinter Cell, select Start Game and press A.

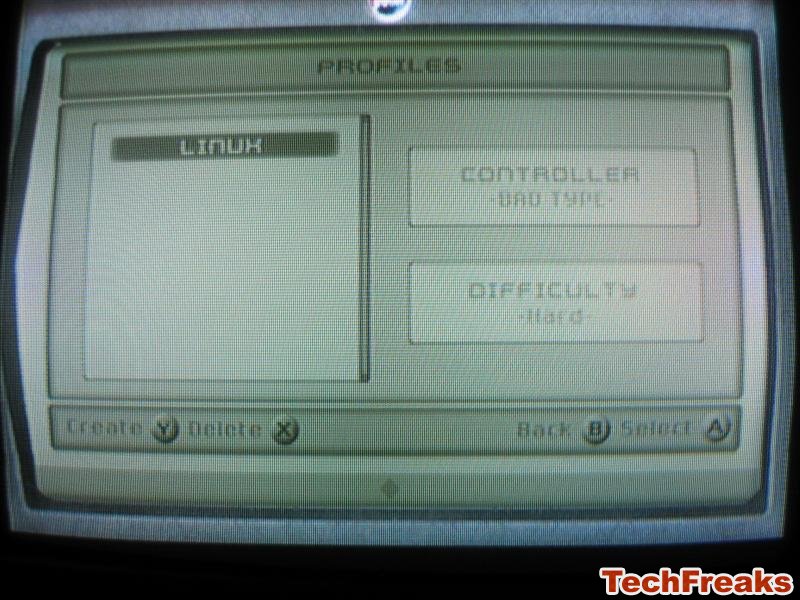

If you have never played Splinter Cell before, there should only be one available gamesave: Linux. Select it and press A.

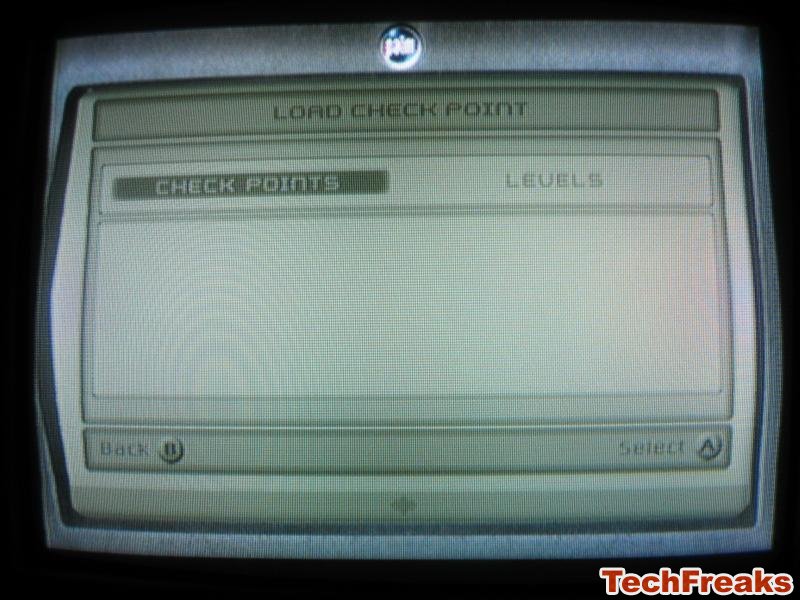

On the next screen, select Check Points (selecting Levels (in my experience) will cause the Xbox to freeze).

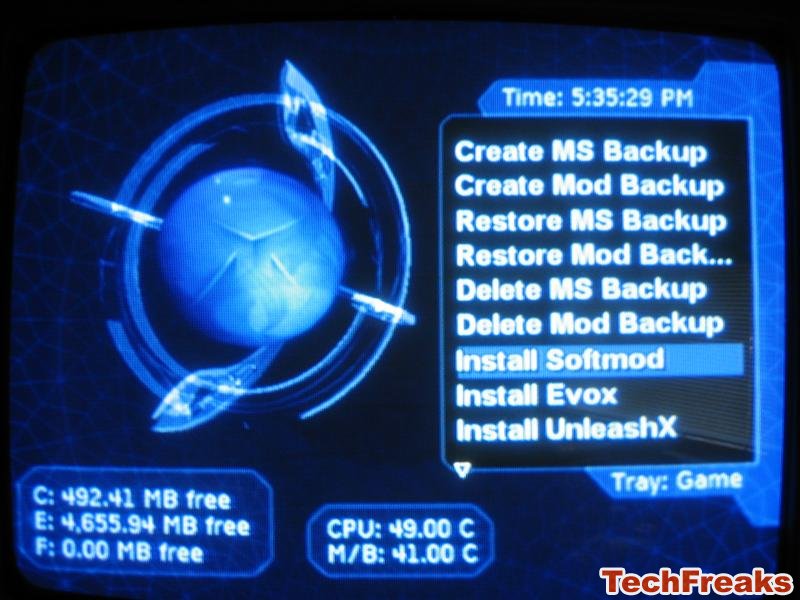

The screen should turn black and approximately 10 seconds later, you will be greeted with an UnleashX intro screen and then an UnleashX control panel.
Select the option, Create MS Backup, which will backup the entire contents of your C: to E:backupMS
Now select the option, Create Mod Backup, which will backup your EEPROM.
If you do not backup your c: and your EEPROM, recovering your console if something does go awry will be incredibly hard or impossible.
Once you have backed up both the C: and EEPROM, select Install Softmod. This will mod your system. DO NOT TURN OFF YOUR SYSTEM. Let the mod install, when it finishes you'll notice that the installation prompt and status bar have disappeared.
Because of the limited capacities of standard Microsoft memory cards, only the Evolution X and Unleash X dashboards have been included in this package. I prefer Evolution X, so select Install Evox and let Evolution X install.
Once you have installed Evolution X, power off your Xbox and turn it back on. Make sure to eject your Splinter Cell game.

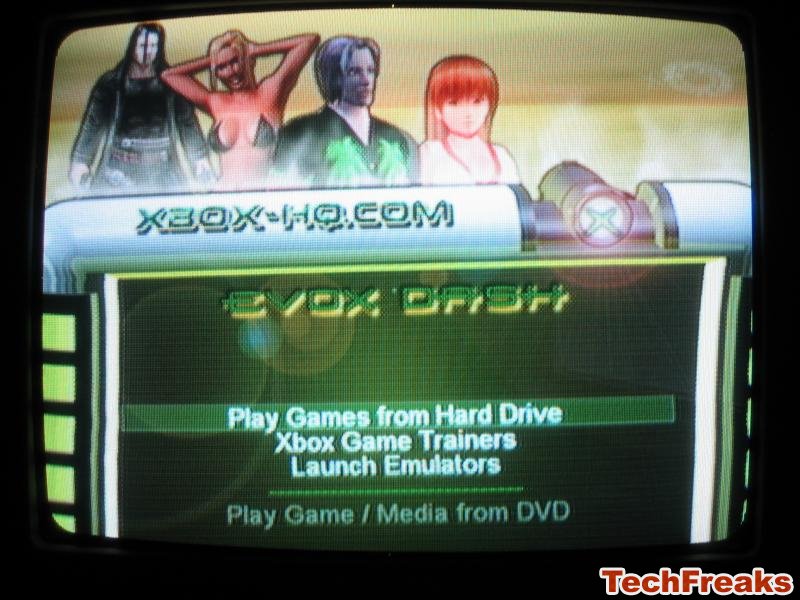

If everything went correctly, your Xbox should be successfully modded and you will be greeted with an Evolution X (or Unleash X) dashboard.
Check back later this week to learn how to install a larger HD in place of the standard 8GB one.
Dont forget that once you have softmodded your xbox you can then use the Auto Installer Deluxe v2.11 FInal to install over 70+ dashboards, emulators and apps all from the one dvd.. Anyway, i hope this helps you somewhat.. I read through it and its very straight forward so i have added to XBOXHQ for all users.
Enjoy and thanks to Michael Brim for the tutorial and screenshots.
