Xbox-Hq.Com :: View topic - xbox v1.6 with aladdin xt+2 hdd activity light
Xbox-Hq.Com Forum Index -> Newbie Central
Post new topic Reply to topic
 xbox v1.6 with aladdin xt+2 hdd activity light View previous topic :: View next topic




somacast
Xbox-HQ Newbie
Xbox-HQ Newbie



Joined: Aug 02, 2017
Posts: 4

Post Posted: Sun Aug 06, 2017 10:35 am
Post subject: xbox v1.6 with aladdin xt+2 hdd activity light
Reply with quote

hello,

I am working on ghost shell mod for this xbox with sone leds and wanted to have the front power light work as HDD activity light, the mod chip installed and bt connected on the modchip itself to enable always on mode, trace on mb cut, wires below connected, d0 , h0, l1 all connected but still the lights are not working as hdd activity?!

any clues please? thank you


View user's profile Send private message




kaos_engr
V.I.P. Lifetime


Joined: Jun 04, 2012
Posts: 116

Post Posted: Sat Aug 19, 2017 9:18 am
Post subject:
Reply with quote

It should work via the H0 and L1 pad connections from the Aladdin XT plus 2 to the Xbox motherboard:

  • H0 - HDD activity signal from back connection to pin of IDE connector
  • L1 - to front panel resistor to flash power ring LED when there is HDD activity detected via H0.

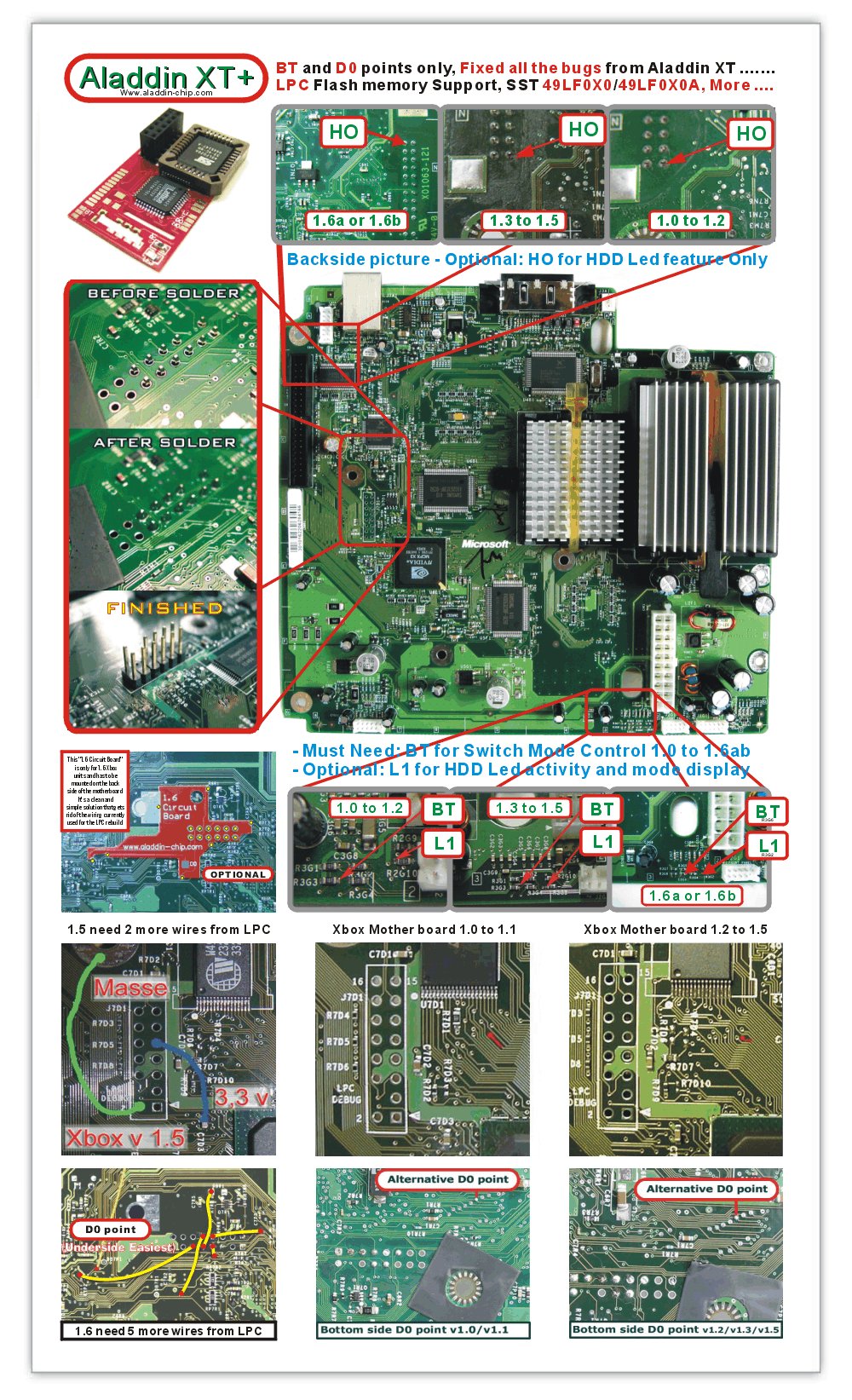

See attached diagram. (Although, you probably already have it.)



 Description:
 Filesize:  463.31 KB
 Viewed:  382 Time(s)
