Xbox-Hq.Com :: View topic - 1.6 Powers up but immediately shuts down
Xbox-Hq.Com Forum Index -> Newbie Central
Post new topic Reply to topic
 1.6 Powers up but immediately shuts down View previous topic :: View next topic




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie



Joined: Feb 25, 2020
Posts: 8

Post Posted: Tue Feb 25, 2020 3:13 am
Post subject: 1.6 Powers up but immediately shuts down
Reply with quote

Attempting to show my grandson my daughters Bad*** Xecuter 3 Mod Original Xbox. I attempted to power on several times and different ways ( tapping quickly holding down power button and using the disk button)the unit would immediately shut down. The Xbox played fine a year ago. It was unplugged sitting on a shelf. So I opened her up and found some swollen capacitors and replaced them. While in there I also re applied paste to GPU and CPU. I tried again to power her up and same result. I'm lost at this point if any of you guys have an idea.

Thanks from East Texas


View user's profile Send private message




Xbmcmodsforxbox
Moderator
Moderator


Joined: Aug 13, 2018
Posts: 540
Location: United States

Post Posted: Tue Feb 25, 2020 5:34 am
Post subject:
Reply with quote

does it power on at all or does it turn on turn off turn on and turn off?
_________________
youtube.com/channel/UCPkPFFEMgoun_8mk_K0NNIA
https://arcade1up-hq.com/
https://start-hq.com/


View user's profile Send private message Send e-mail




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: V1.4
Modded: Xecuter 3 2tb xerc 2xe

Joined: Feb 25, 2020
Posts: 8

Post Posted: Wed Feb 26, 2020 1:29 am
Post subject:
Reply with quote

Immediately hear fan come on then goes off. All shuts on and off in about 1 second.


View user's profile Send private message




Xbmcmodsforxbox
Moderator
Moderator


Joined: Aug 13, 2018
Posts: 540
Location: United States

Post Posted: Wed Feb 26, 2020 1:31 am
Post subject:
Reply with quote

sounds like a bad psu you would have too buy a new one for like 15 bucks off of ebay.
_________________
youtube.com/channel/UCPkPFFEMgoun_8mk_K0NNIA
https://arcade1up-hq.com/
https://start-hq.com/


View user's profile Send private message Send e-mail




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: V1.4
Modded: Xecuter 3 2tb xerc 2xe

Joined: Feb 25, 2020
Posts: 8

Post Posted: Wed Feb 26, 2020 1:53 am
Post subject:
Reply with quote

SorryI didnt add to first comment but I already purchased a psu from fleabay and it acts the same. Could it be the transistor everyone talking about.
SMD transistor, Q7C2 an MMBT4403LT1G


View user's profile Send private message




Xbmcmodsforxbox
Moderator
Moderator


Joined: Aug 13, 2018
Posts: 540
Location: United States

Post Posted: Wed Feb 26, 2020 2:47 am
Post subject:
Reply with quote

is there clock cap leakage.
_________________
youtube.com/channel/UCPkPFFEMgoun_8mk_K0NNIA
https://arcade1up-hq.com/
https://start-hq.com/


View user's profile Send private message Send e-mail




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: V1.4
Modded: Xecuter 3 2tb xerc 2xe

Joined: Feb 25, 2020
Posts: 8

Post Posted: Wed Feb 26, 2020 2:59 pm
Post subject:
Reply with quote

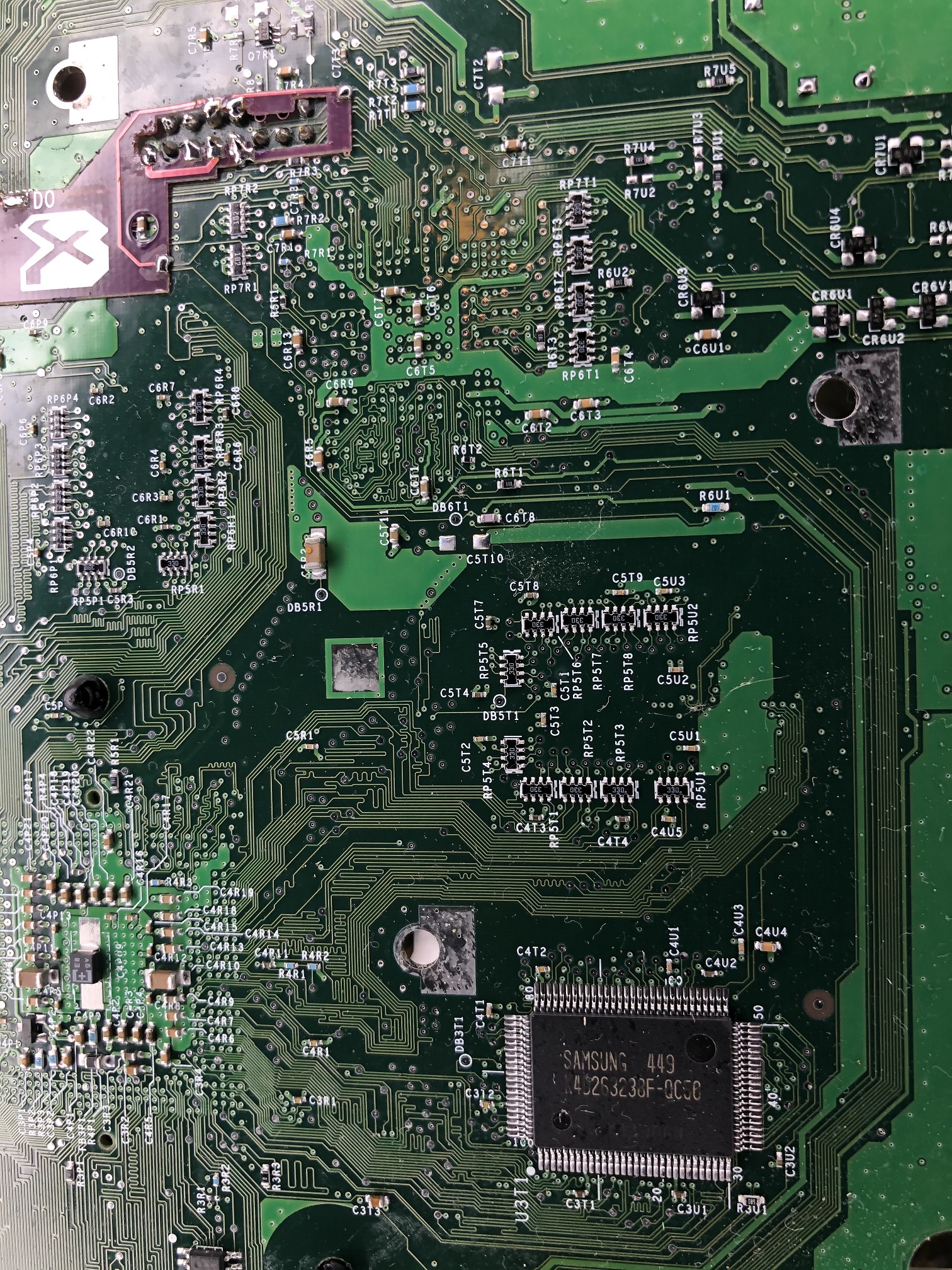

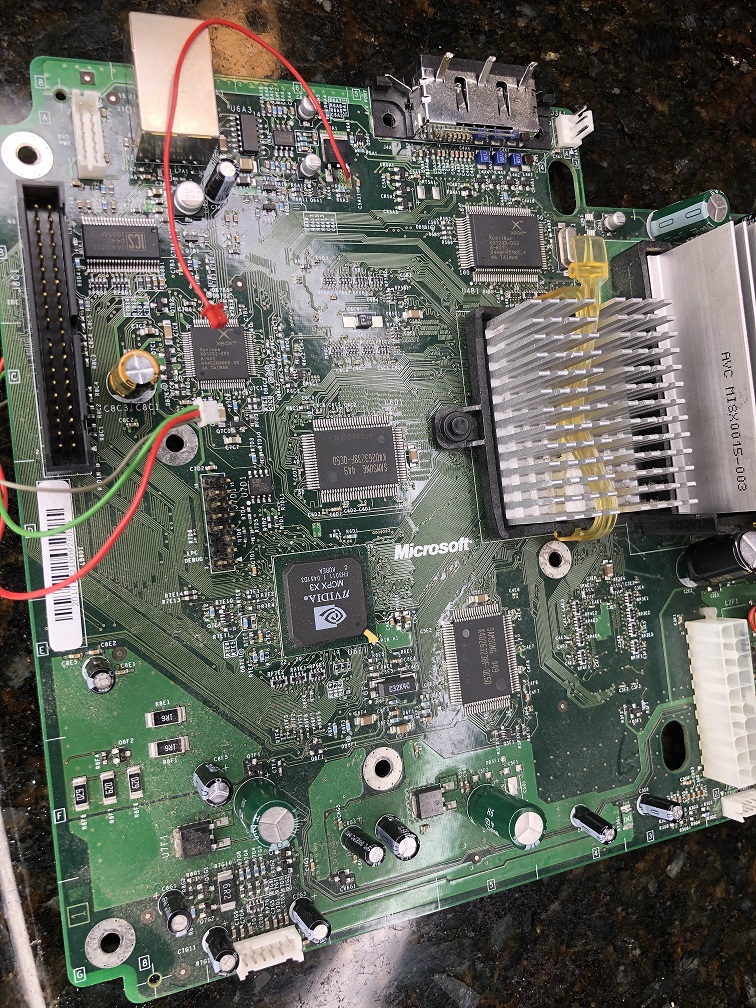

Here are Pics


 Description:
 Filesize:  1.66 MB
 Viewed:  20 Time(s)




 Description:
 Filesize:  1.59 MB
 Viewed:  21 Time(s)




 Description:
 Filesize:  500.07 KB
 Viewed:  21 Time(s)





View user's profile Send private message




ArchAngle
V.I.P. Lifetime

Xbox Version: v1.6
Modded: Xecuter 2.6 CE

Joined: Oct 03, 2014
Posts: 305

Post Posted: Thu Feb 27, 2020 12:31 am
Post subject:
Reply with quote

I may be just displaying my almost total ignorance about Xecuter 3 mod-chip installations but isn't something missing from those pictures?

There's some sort of Xecuter mounting on bottom of the board, probably replacing some of the additional wiring usually required but on the top those two connectors should be plugged into.........................the mod-chip.

The red one I know is for the extra power that is needed for the mod-chip when used on a v1.6 MB.

There's just nothing there only the pin header which the mod-chip should be plugged into. You didn't just remove the mod-chip for the pictures or for some other reason did you?

If correct and the mod-chip is missing it is not really surprising it is not working.


View user's profile Send private message




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: v1.6
Modded: Xecuter 2.6 CE

Joined: Feb 25, 2020
Posts: 8

Post Posted: Thu Feb 27, 2020 1:53 pm
Post subject:
Reply with quote

I removed the Chip so all of the board could be seen. Sorry I didnt mention that earlier.


View user's profile Send private message




kaos_engr
V.I.P. Lifetime


Joined: Jun 04, 2012
Posts: 130

Post Posted: Thu Feb 27, 2020 6:16 pm
Post subject:
Reply with quote

Check the voltage of the collector pin of the transistor you mentioned. It's the pin on the side by itself. It should be 3.3Vdc +/- 5%.


View user's profile Send private message Visit poster's website




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: 1.0/1.1/1.4/1.6
Modded: X2/X3/XST/Xenium

Joined: Feb 25, 2020
Posts: 8

Post Posted: Sat Feb 29, 2020 4:57 pm
Post subject:
Reply with quote

Well I checked the Transistor and it 3.26 which I believe is OK. So ????
Thanks for everyone's help on here.


View user's profile Send private message




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: 1.0/1.1/1.4/1.6
Modded: X2/X3/XST/Xenium

Joined: Feb 25, 2020
Posts: 8

Post Posted: Sat Feb 29, 2020 5:19 pm
Post subject:
Reply with quote

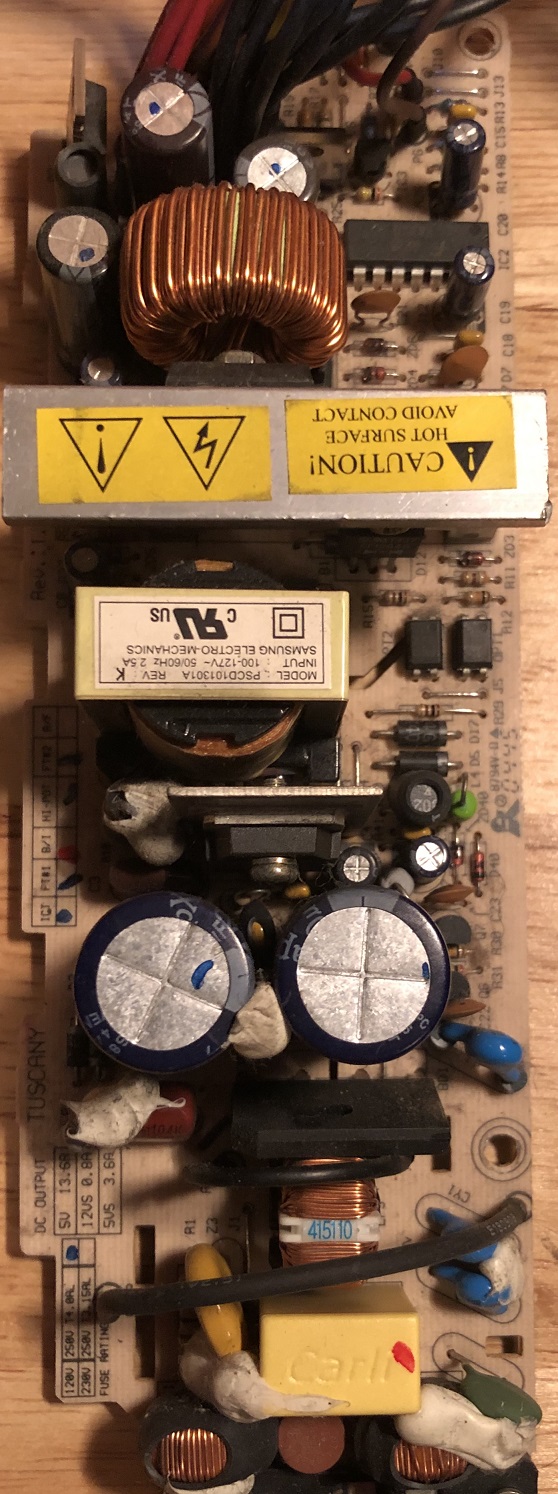

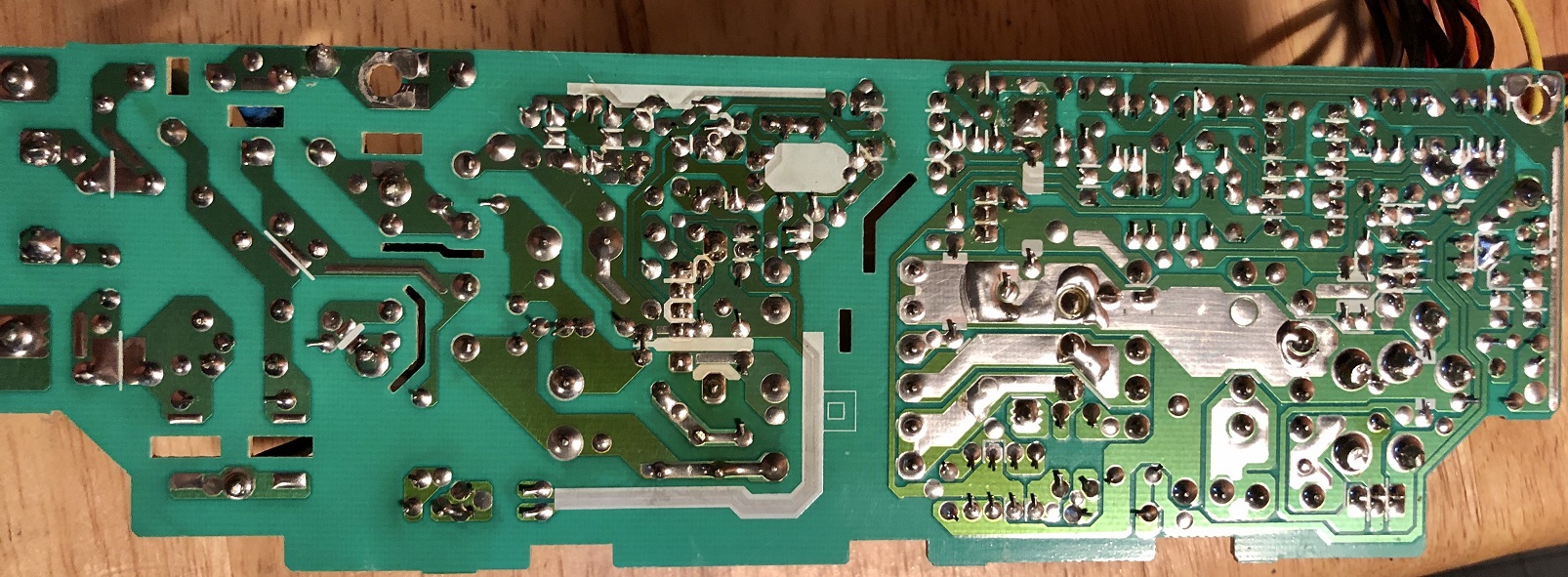

PSU pics


 Description:
 Filesize:  447.58 KB
 Viewed:  16 Time(s)




 Description:
 Filesize:  304.51 KB
 Viewed:  17 Time(s)





View user's profile Send private message




bassinhuntin
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: 1.0/1.1/1.4/1.6
Modded: X2/X3/XST/Xenium

Joined: Feb 25, 2020
Posts: 8

Post Posted: Wed Mar 25, 2020 8:20 pm
Post subject:
Reply with quote

At this point if anyone that would like to help me get this thing going for my grandson that would be awesome and of course would pay you for your time and shipping to and from. I have over 200 games for this system haste to see it go to waste.


View user's profile Send private message
