 Help with unknown modchip from secondhand Xbox View previous topic :: View next topic




ZombeeRitual
Xbox-HQ Newbie
Xbox-HQ Newbie



Joined: Dec 28, 2018
Posts: 7

Post Posted: Sat Dec 29, 2018 2:38 am
Post subject: Help with unknown modchip from secondhand Xbox
Reply with quote

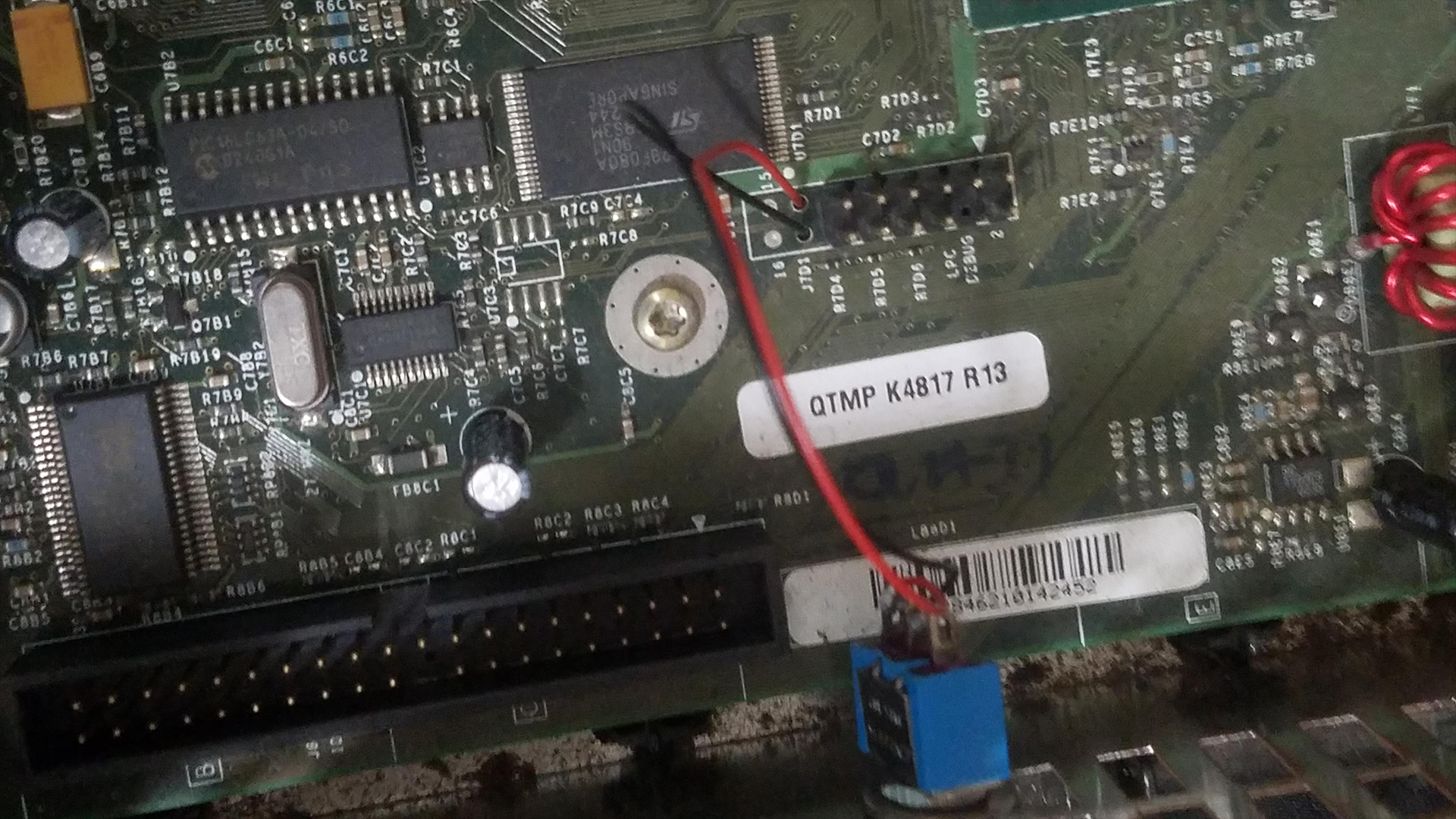

Hello everyone, first time on this site and new to the Xbox modding community. I recently bought myself an original Xbox 1.1 from a Goodwill for 20 bucks. According to them it didn't work and I figured I could bring it back to life. Originally, I didn't notice that it had a little switch sticking out of the side of the system. It wasn't until I opened it up to clean up the mess left behind by its clock capacitor. The switch had two connected wires that went on through to the other side where they were soldered. It also had a modchip attached to it that I have yet to properly identify. Here are some pics of it.

http://imgur.com/gallery/y3hZVgK

I managed to get the Xbox to boot up once again after replacing the damaged ribbon cable and swapping the fan since it wouldn't budge anymore. I decided to also test the switch and see what it does. I then found out that it is what more than likely used to enable the mod to work. Whenever the switch is in the on position, it attempts to boot up three times then flashes red and green without any video on display. Whenever it's in the off position, it of course just boots up normally. I don't really know how to troubleshoot the issue since I am not at all familiar with Xbox modchips.

Which brings me here today. I am certain that someone here might be able to shed some light on what I'm dealing with. It's a bit difficult to find info since i don't know what to search for really. But I'd like nothing more than to get the Xbox mod to work again.



 Description:
 Filesize:  1.1 MB
 Viewed:  538 Time(s)




 Description:
 Filesize:  1.2 MB
 Viewed:  599 Time(s)





View user's profile Send private message




forahobby
Administrator
Administrator


Joined: May 22, 2003
Posts: 23942
Location: NSW, Australia

Post Posted: Sat Dec 29, 2018 2:44 pm
Post subject:
Reply with quote

It's a shame you can't get an error code to display. Here is a link to the Error Codes tutorial. More than likely your mod is looking for some custom files and they are missing. The modchp could be stuffed as well. Are there any lights on it to indicate that the modchip has power??

e5 e13 e16 e21 XBOX Service Error Codes
https://www.xbox-hq.com/html/xbox-tutorials-12.html

Another thing you might want to try Auto Installer Deluxe (AID). Download it and burn it to a DVD-R and put it in your xbox with the modchip enabled.. If the modchip is working correctly it should boot the AID disc no matter what.

Hope that helps get you started on the repairs.

Enjoy the site,



hobbs
http://www.xbox-hq.com
http://www.xboxone-hq.com
http://www.360-hq.com
http://www.c64-hq.com



 Description:
Error code is located in the top left
 Filesize:  16.74 KB
 Viewed:  371 Time(s)




_________________
HQ Network:
www.xbox-hq.com | www.xboxone-hq.com | www.360-hq.com | www.c64-hq.com


View user's profile Send private message Send e-mail Visit poster's website




ZombeeRitual
Xbox-HQ Newbie
Xbox-HQ Newbie



Joined: Dec 28, 2018
Posts: 7

Post Posted: Sat Dec 29, 2018 6:51 pm
Post subject:
Reply with quote

forahobby wrote:
It's a shame you can't get an error code to display. Here is a link to the Error Codes tutorial. More than likely your mod is looking for some custom files and they are missing. The modchp could be stuffed as well. Are there any lights on it to indicate that the modchip has power??

e5 e13 e16 e21 XBOX Service Error Codes
https://www.xbox-hq.com/html/xbox-tutorials-12.html

Another thing you might want to try Auto Installer Deluxe (AID). Download it and burn it to a DVD-R and put it in your xbox with the modchip enabled.. If the modchip is working correctly it should boot the AID disc no matter what.

Hope that helps get you started on the repairs.

Enjoy the site,



hobbs
http://www.xbox-hq.com
http://www.xboxone-hq.com
http://www.360-hq.com
http://www.c64-hq.com


Alright, so I burned a copy of AID 4.53 onto a DVD-R and placed it into my Xbox with the chip enabled. Sadly, nothing happened other than it doing the usual startup three times then fragging. Also, there is no light to indicate that it is on. It just has a wired on/off switch attached to the side of the Xbox that enables the modchip. When it is off, it just boots normally.


View user's profile Send private message




forahobby
Administrator
Administrator


Joined: May 22, 2003
Posts: 23942
Location: NSW, Australia

Post Posted: Sun Dec 30, 2018 3:19 am
Post subject:
Reply with quote

Such a shame. Sounds like the modchip is dead or the bios is corrupted. Come and join us in the Discord chat room.

XBOX-HQ.COM DISCORD CHAT
https://discordapp.com/invite/FPRfj5?utm_source=Discord%20Widget&utm_medium=Connect&username=ZombeeRitual

_________________
HQ Network:
www.xbox-hq.com | www.xboxone-hq.com | www.360-hq.com | www.c64-hq.com


View user's profile Send private message Send e-mail Visit poster's website




easymoddr
Xbox-HQ Enthusiast
Xbox-HQ Enthusiast



Joined: Jan 03, 2016
Posts: 22

Post Posted: Sat Jan 05, 2019 11:59 am
Post subject:
Reply with quote

I got the same modchip in an Asian crystal blue xbox I purchased, it was also corrupt. I was able to rescue it by putting an Aladdin modchip in, I bypassed the switch and connected the wire coming from the motherboard to the DO point on the chip. Booted a HEXEN disk and took it into the flash menu. Then leaving the xbox powered on, I swapped the Aladdin modchip for the other one. I flashed the chip and it has worked since.


View user's profile Send private message




Xbmcmodsforxbox
Moderator
Moderator


Joined: Aug 13, 2018
Posts: 602
Location: United States

Post Posted: Tue Jan 29, 2019 11:55 pm
Post subject:
Reply with quote

Just by the way that mod chip is Lpc mod v2 is what i read on a fourm
_________________
https://www.youtube.com/channel/UCPkPFFEMgoun_8mk_K0NNIA
https://arcade1up-hq.com/
https://start-hq.com/


View user's profile Send private message Send e-mail




systemb2
Xbox-HQ Newbie
Xbox-HQ Newbie

Xbox Version: V1.4
Modded: Xecuter 3 2tb xerc 2xe

Joined: May 17, 2019
Posts: 1

Post Posted: Fri May 17, 2019 9:31 am
Post subject:
Reply with quote

The modchip is called X-DU and the reason why it doesn't work is that it's plugged wrong way to the pinheader.

Flip the chip 180 degrees and hope it still works. Good luck.


View user's profile Send private message




ArchAngle
V.I.P. Lifetime

Xbox Version: v1.6
Modded: Xecuter 2.6 CE

Joined: Oct 03, 2014
Posts: 362

Post Posted: Fri May 17, 2019 10:59 am
Post subject:
Reply with quote

As I've said here before I'm not any sort of Xbox modchip expert BUT the evidence from other tutorials and pictures I've found suggests that systemb2 identification of the chip as a X-DU and the simple solution is correct.

Good call.

Just hope it does work when the chip is re-orientated.



Chip ID.jpg
 Description:
 Filesize:  151.17 KB
 Viewed:  331 Time(s)

Chip ID.jpg




View user's profile Send private message




Xbmcmodsforxbox
Moderator
Moderator


Joined: Aug 13, 2018
Posts: 602
Location: United States

Post Posted: Fri May 17, 2019 2:25 pm
Post subject:
Reply with quote

huh yea i saw that modchip on reddit
