Xbox-Hq.Com :: View topic - installed x3ce first green orange light now just dead
Xbox-Hq.Com Forum Index -> Xecuter Modchip Discussions (Xecuter1, Xecuter2, Xecuter3)
Post new topic Reply to topic  Goto page 1, 2  Next
 installed x3ce first green orange light now just dead View previous topic :: View next topic




subun1t
Xbox-HQ User
Xbox-HQ User

Xbox Version: v1.6b
Modded:

Joined: Jun 07, 2008
Posts: 10

Post Posted: Tue Jun 10, 2008 7:11 am
Post subject: installed x3ce first green orange light now just dead
Reply with quote

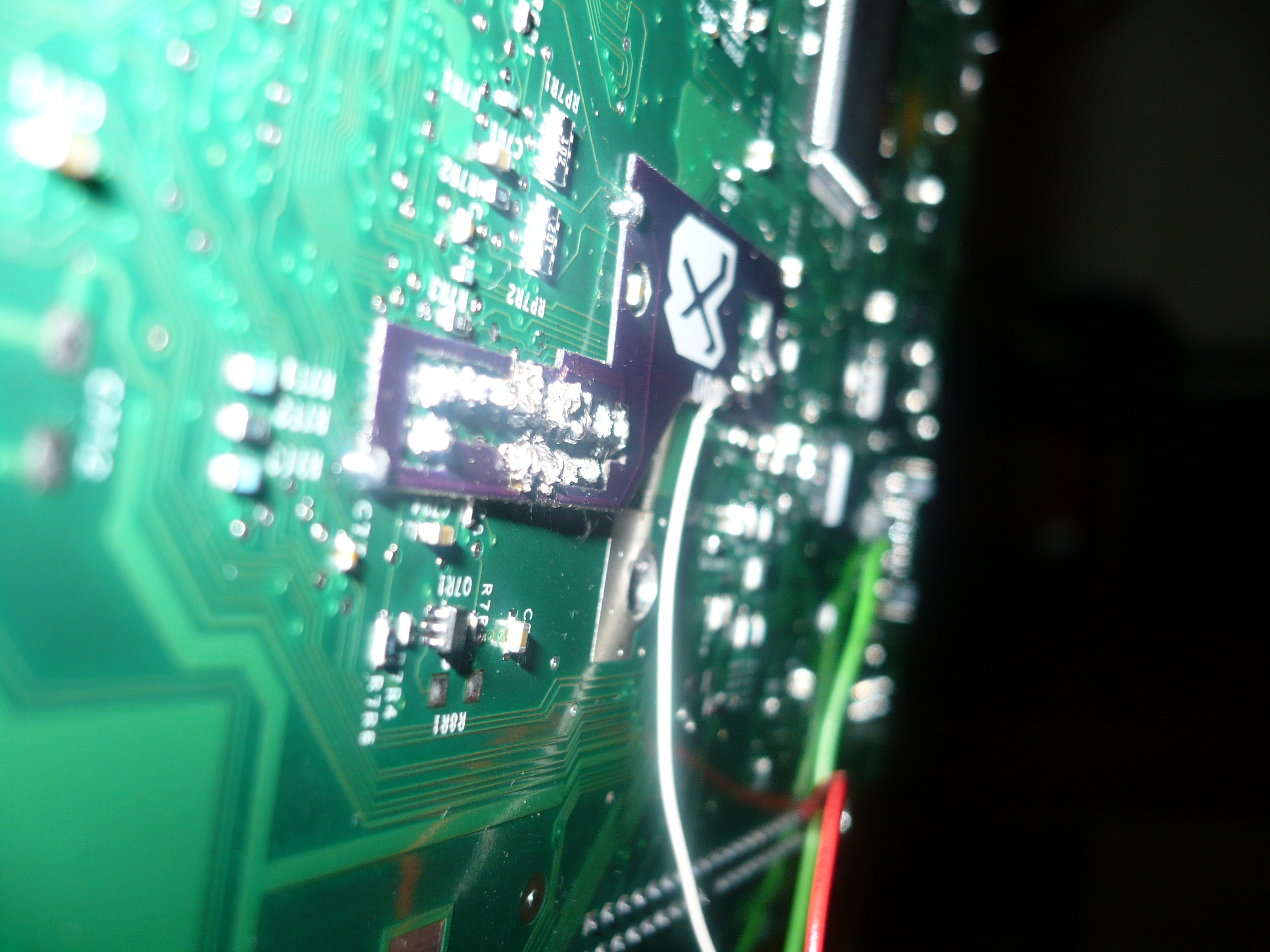

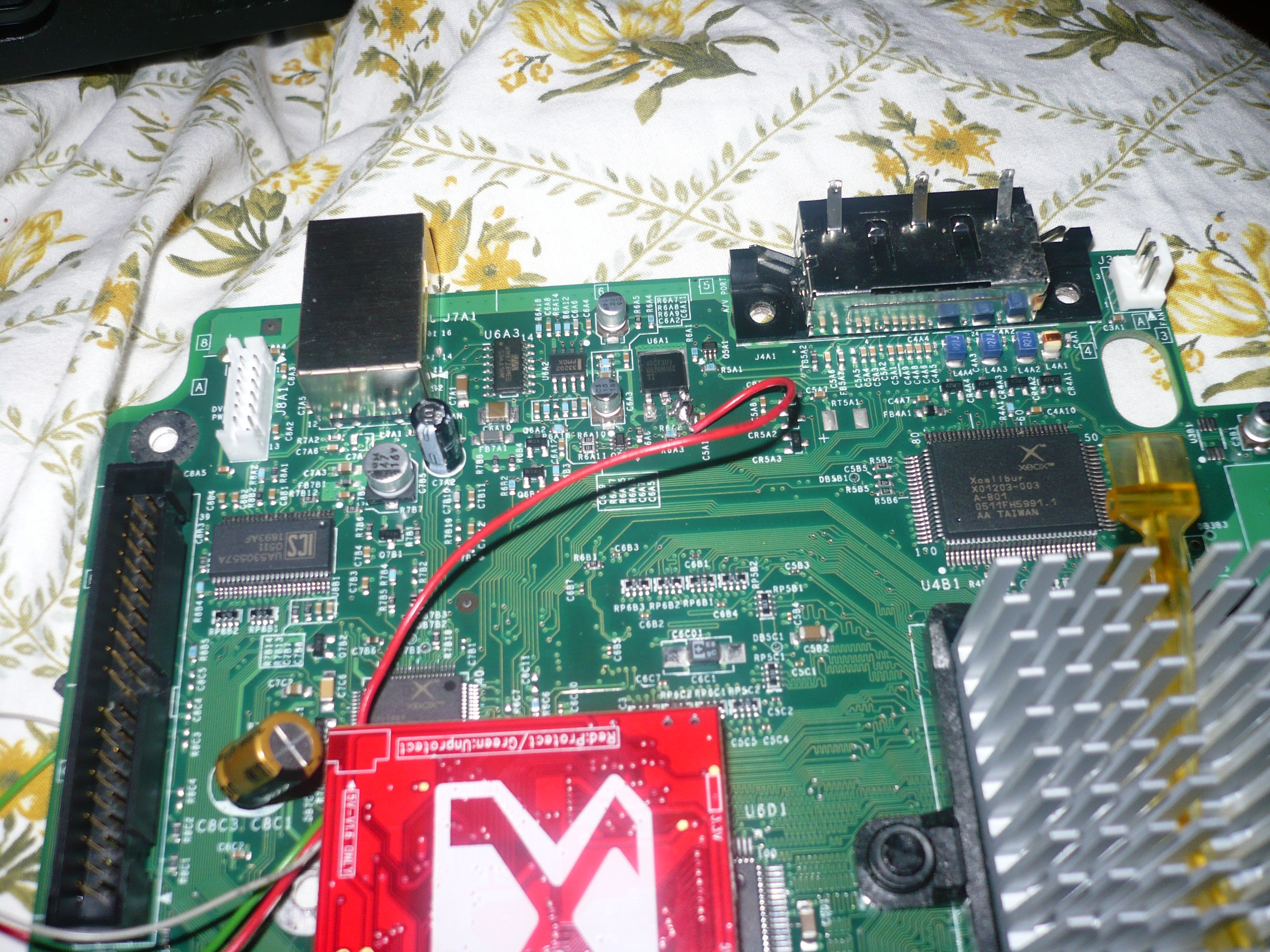

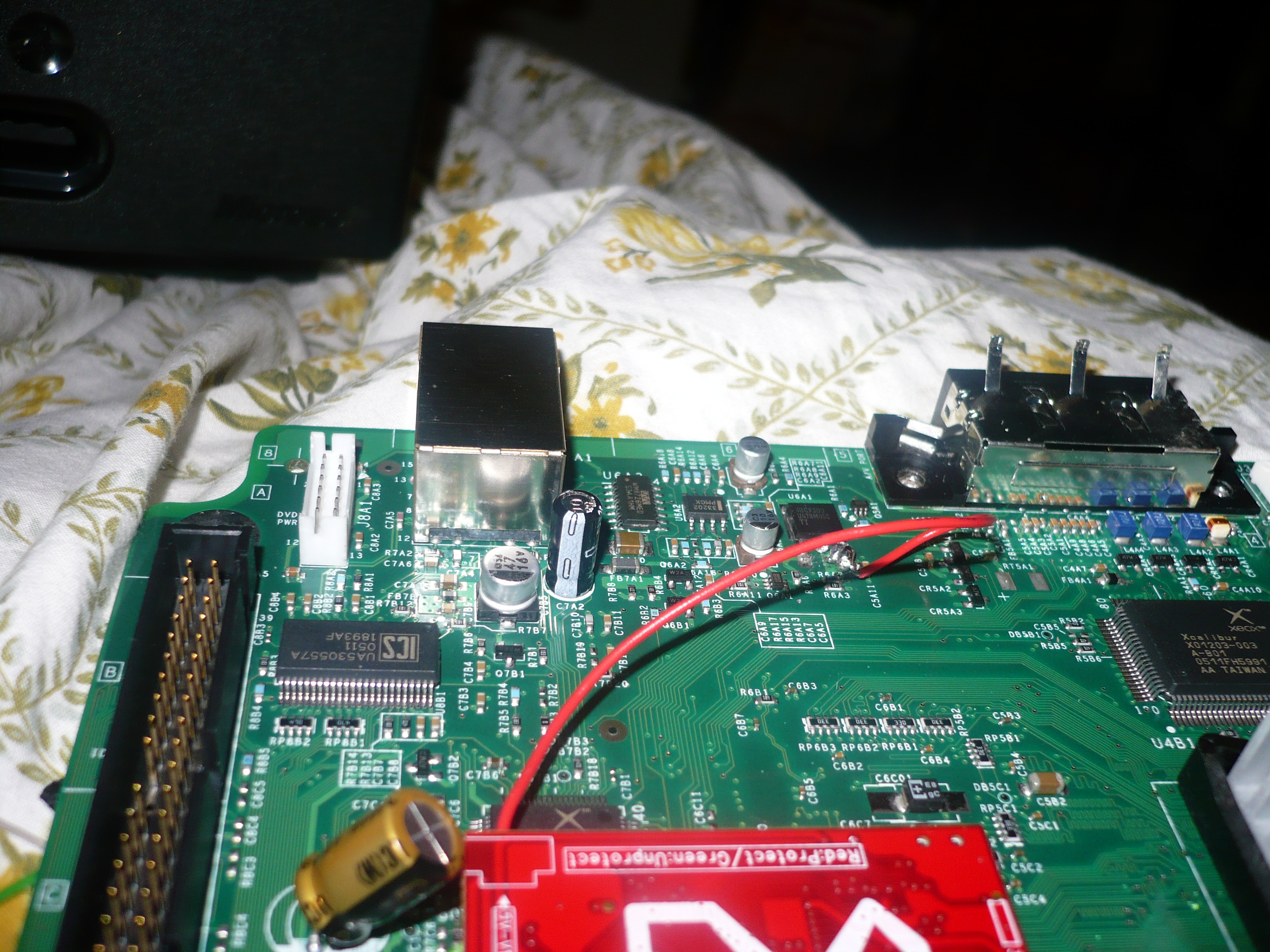

wats up everyone well i have 2 modded xbox's first 1 is about 2 or 3 yrs old and i had paid some1 to do it i always knew about modding but i was scared to try it on my own.. yes lol so i finally went through with it on a second xbox which is a v1.6b got a solderless x3ce as i was trying to install couldn't find the holes or there was something blocking the holes and i didnt have ness. tools to clean out so i figured let me man up and solder the damn thing went ok a little bit too much at the pcb rebuild finished up everything tapped the power button it went green the flashed orange about 3 or 4 times and stopped and it made a sound each time it flashed sounded like the hd so i kept reading and reading all i have been doing every night is reading up on the subject getting ready practicing soldering so alot of faqs said check solder points make sure everything is plugged in i did that and i noticed i soldered the d0 cable in the wrong place put it in the right place closed it up tapped the power samething so again i tried this time i re touched the alt.5v closed it up tapped the power now nothing happened at this point i was very dissapointed in my self so i kept rechecking ,trying, reading nothing so once again i checked the soldering and i dont know what to do or think its like the psu went out but i kept everything out and hit the power a blue LED comes on X3CE and when i let go of the power it goes off so please some one help with some advice, i ordered the duoX2lite because thats whats in my first xbox which is cheaper but i never had a problem with my first xbox. and so im buying another xbox this weekend but i dont want to give up on this one i want to fix it heres some pics of it tried to make em as clear as possible


 Description:
 Filesize:  2.65 MB
 Viewed:  595 Time(s)




 Description:
 Filesize:  2.9 MB
 Viewed:  580 Time(s)




 Description:
 Filesize:  2.64 MB
 Viewed:  599 Time(s)





View user's profile Send private message




wes213
Administrator
Administrator


Joined: Feb 04, 2007
Posts: 10519
Location: Harrisonburg V.A.

Post Posted: Tue Jun 10, 2008 7:31 am
Post subject:
Reply with quote

Welcome to the XBOX-HQ, we hope you enjoy this and all the other HQ sites we have to offer. Very Happy

Sorry man i don't want to knock your work, we all got to start some ware right but if i had to guess by the pics it looks like the huge gobs of solder might be touching each other or contacts its not suppose to touch.


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




roo465
Moderator
Moderator


Joined: Apr 29, 2005
Posts: 982
Location: ACT, Australia

Post Posted: Tue Jun 10, 2008 7:52 am
Post subject:
Reply with quote

If you haven't fried anything, you might be able to save it by removing all your soldering with some solder wick, and starting again. This may also be of some help to you.

It looks as if the joints may not have been hot enough for the solder to flow evenly. Check out this tutorial if you need some more pointers on soldering.

Good luck!

_________________


View user's profile Send private message Visit poster's website




subun1t
Xbox-HQ User
Xbox-HQ User

Xbox Version: v1.6b
Modded:

Joined: Jun 07, 2008
Posts: 10

Post Posted: Tue Jun 10, 2008 10:23 pm
Post subject:
Reply with quote

thanks for the responses guys that was quick lol I wish all sites or companies responded just as quik but ok im going to take in what you said and go in the xbox again im determined to get this done right first time doing it I guess it was expected since im new to soldering should of tried with the cheap chip first then the x3ce with the xapter and shipping it was 95 dollars but I lack paitience so much reading I wanted to jump in but once again thanks


View user's profile Send private message




wes213
Administrator
Administrator


Joined: Feb 04, 2007
Posts: 10519
Location: Harrisonburg V.A.

Post Posted: Wed Jun 11, 2008 4:15 am
Post subject:
Reply with quote

I'm just as full on and jump in to all my projects but end up redoing 60% of my work. Rolling Eyes

I don't think i will ever get the hang of patience. LOL

Keep us updated bro. Very Happy


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




subun1t
Xbox-HQ User
Xbox-HQ User

Xbox Version: v1.6b
Modded:

Joined: Jun 07, 2008
Posts: 10

Post Posted: Thu Jun 12, 2008 4:49 am
Post subject:
Reply with quote

im back thought i was coming back saying success but not yet >< well i de soldered and soldered back. i was done in about 10 15 mins when the first try it took a few hours,soldering i never placed the iron for too long just about a second or 2 enough for the solder to melt that i would place the wires etc. now the xbox turns on i almost exploded on my self i was so happy it went to the dash i turned it off to continue today now today my luck went south it still turns on and depending what bank its on it just might flash orange or green and red or just flash green itll just boot to the ms dash mostly the ms dash and thats it . on the switch itll usualy go red meaning disabled sometimes the hdd will light up blue n more rarely the lan will go orange or something.ive tried a bunch of combos with the banks tapping the power button quickly pushing power and eject nothing it wont go to flash bios and sometimes like i said itll flash a color now i was reading and it seemed a few people had almost the same prob but diffrent outcome 1 person had to solder a little better spreading more and another had possibly a bad chip so im not sure whats going on with mine,i just opened it up i re did the 5v cuz it came loose so now no more erros but no flash it just goes str8 to the ms dash and i dont even think its lighting up disabled or anything. im goin to once again put up some pics and see if anyone could help id really appreciate it but right now i think its either my soldering or the chip dont know everything turns on even the chip when i peek in it lights up blue inside but nothing going on other than that [img]http://www.fileden.com/files/2006/6/25/88727/P1000471.JPG
[/img]http://www.fileden.com/files/2006/6/25/88727/P1000472.JPG
[img]http://www.fileden.com/files/2006/6/25/88727/P1000473.JPG
[/img]http://www.fileden.com/files/2006/6/25/88727/P1000474.JPG


View user's profile Send private message




wes213
Administrator
Administrator


Joined: Feb 04, 2007
Posts: 10519
Location: Harrisonburg V.A.

Post Posted: Thu Jun 12, 2008 2:22 pm
Post subject:
Reply with quote

Looking it over and its hard to tell what the exact problem is, the two things i see is it may be from solder splatter or it could be a lack of contact as you can see gaps around the pin headers holes.


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




dartht33bagger
Moderator
Moderator


Joined: Apr 17, 2007
Posts: 5408
Location: Oregon, USA

Post Posted: Thu Jun 12, 2008 7:32 pm
Post subject:
Reply with quote

I would first try to melt the solder down better on the LPC holes. If that doesn't work then were looking at solder splatter problems.
_________________


View user's profile Send private message




wes213
Administrator
Administrator


Joined: Feb 04, 2007
Posts: 10519
Location: Harrisonburg V.A.

Post Posted: Thu Jun 12, 2008 8:22 pm
Post subject:
Reply with quote

Nice reiteration.


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




lostsoulhd
V.I.P. Lifetime

Xbox Version: 1.0 160gb hdd,
Modded: doux2 white + xenium gold

Joined: Apr 19, 2008
Posts: 113
Location: madison

Post Posted: Fri Jun 13, 2008 1:10 am
Post subject:
Reply with quote

i had solder splatter problems on a 1.6 with x3ce my solution was disconnect everything take out motherboard
used electric toothbrush and a cap full of rubbing alcohol and cleaned splatter
rubbing alcohol leaves no residue on board but must let dry before reinstall
quick easy just want to help when i can
good luck


View user's profile Send private message Send e-mail




subun1t
Xbox-HQ User
Xbox-HQ User

Xbox Version: v1.6b
Modded:

Joined: Jun 07, 2008
Posts: 10

Post Posted: Mon Jun 16, 2008 1:47 pm
Post subject:
Reply with quote

that was my next question how to remove solder splatter i was told just heat it with the iron and scrape it off , but ya i appreciate it im going to buy the stuff to day .now i got the duox2 lite i was thinking of installing it in the xbox later just in case this never works as a last try but thats if and when the splatter is gone hopefully everything will just work though,and anyway the duox2lite didn't come with the ness. wires so i need to find out what type of wires i need to go from the chip to the mother board so much trouble ><


View user's profile Send private message




wes213
Administrator
Administrator


Joined: Feb 04, 2007
Posts: 10519
Location: Harrisonburg V.A.

Post Posted: Mon Jun 16, 2008 3:15 pm
Post subject:
Reply with quote

Here is the install guide for that chip http://www.modsupplier.com/catalog/xbox-duox-2-lite-p-156.html as for type of wire you can use any wire about the same gage as headphone wires.

I don't know who told you to heat and scrape the solder splatter but they are nuts, thats a sure fire way to trash the mobo.


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




subun1t
Xbox-HQ User
Xbox-HQ User

Xbox Version: v1.6b
Modded:

Joined: Jun 07, 2008
Posts: 10

Post Posted: Tue Jun 17, 2008 6:01 am
Post subject:
Reply with quote

whats up people will i ever get this box done before you guys get tired of me i dont know lol but uh i fixed the splatter tooth brush and rubbing alcohol worked like a charm ,got a new rebuild piece and threw out the old one soldered everything it looked to me as close to perfect can get only thing is with the d0 5v and the red wire on the back next to the d0(forget the name) half the tip is soldered to the point some of it would be sticking out not sure if it matter or maybe cut it down some anyway one everything was soldered i put everything together if anyone would like a pic il take some tomorrow and post em. now when i pressed the power everything lit up and the switch lit up blue so time froze for a moment could it be??! then it flashed green 3 times and did the christmas light routine and the switch is red(disabled)......so i was reading a post here and it could be a bad chip and traces?hm . this keeps happening when i try and boot up the chip but if i hold in the power button it boots to the m$ dash just fine i dont know guys this is growning very frustrating


View user's profile Send private message




wes213
Administrator
Administrator


Joined: Feb 04, 2007
Posts: 10519
Location: Harrisonburg V.A.

Post Posted: Tue Jun 17, 2008 6:16 am
Post subject:
Reply with quote

Post the pics in the morning and i will look it all over for you man, might be a bad mobo and at this point its really hard to say.


View user's profile Send private message Send e-mail AIM Address Yahoo Messenger MSN Messenger




subun1t
Xbox-HQ User
Xbox-HQ User

Xbox Version: v1.6b
Modded:

Joined: Jun 07, 2008
Posts: 10

Post Posted: Wed Jun 18, 2008 6:45 am
Post subject:
Reply with quote

Image 1
Image 2
Image 3
Image 4
Image 5
Image 6
Image 7


heres the pics
